Using Feature Display Hotkeys

Using Feature Display Hotkeys

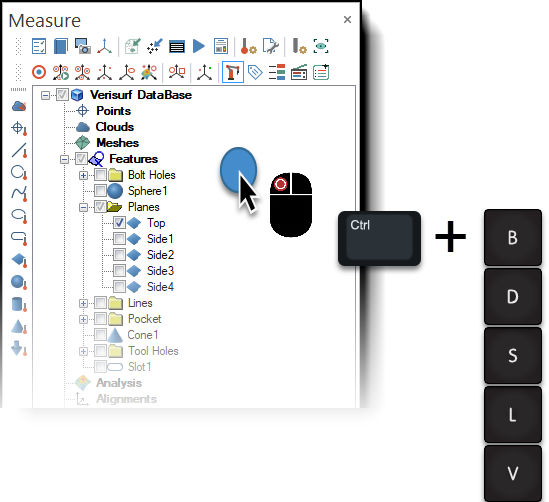

Left-clicking in the Data Manager allows the User to quickly change the display of measured features using the CTRL key in combination with B, D, S, L, or V.

Holding CTRL and pressing a designated key repeatedly cycles the display attribute. Give it a try!

HOTKEY DETAILS

Hotkeys

Before / After

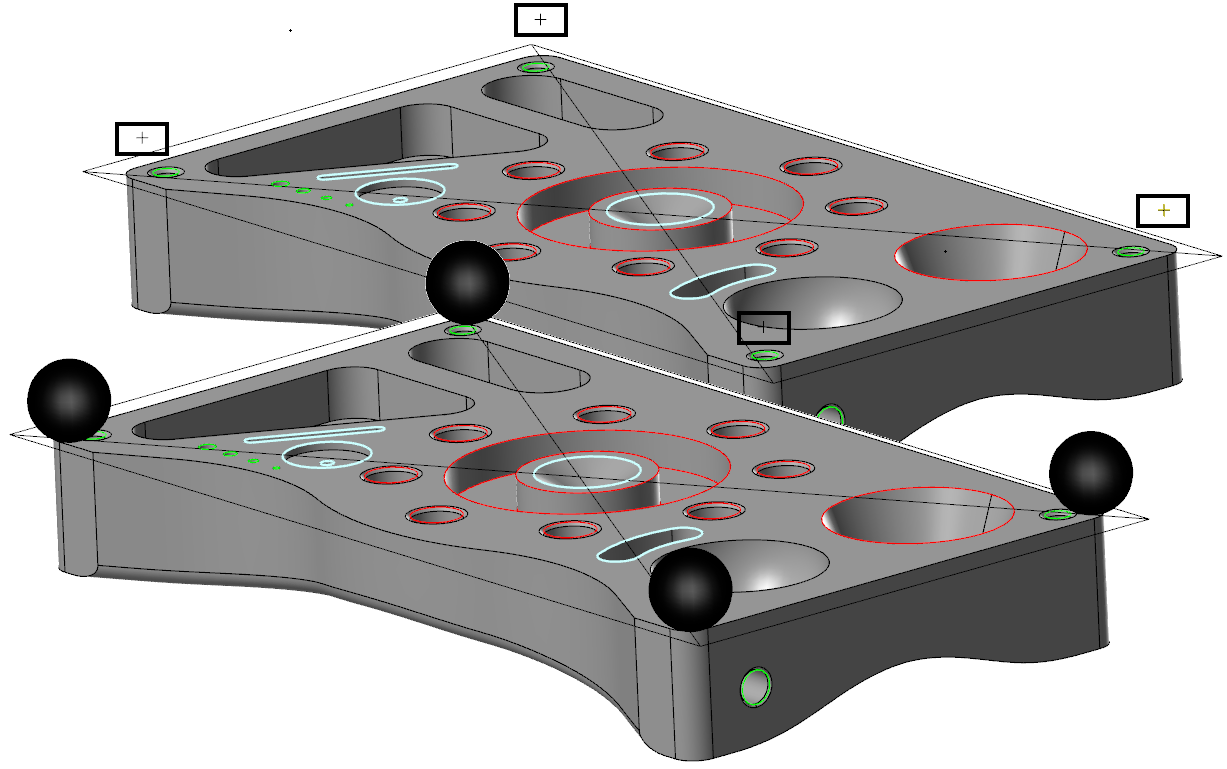

Displays a Ball on the measured point used for Feature measurement.

Feature Shading – with each click of the ‘D’ key, the feature display changes.

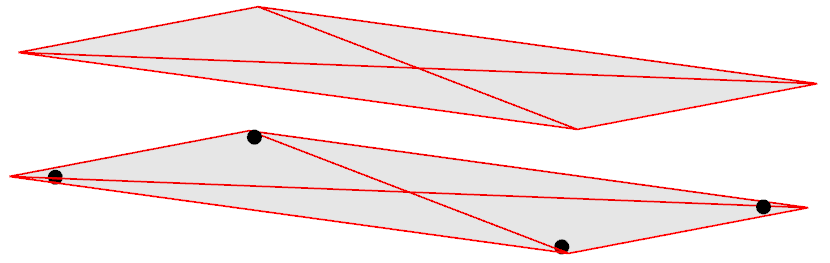

Turns the measured points On/Off

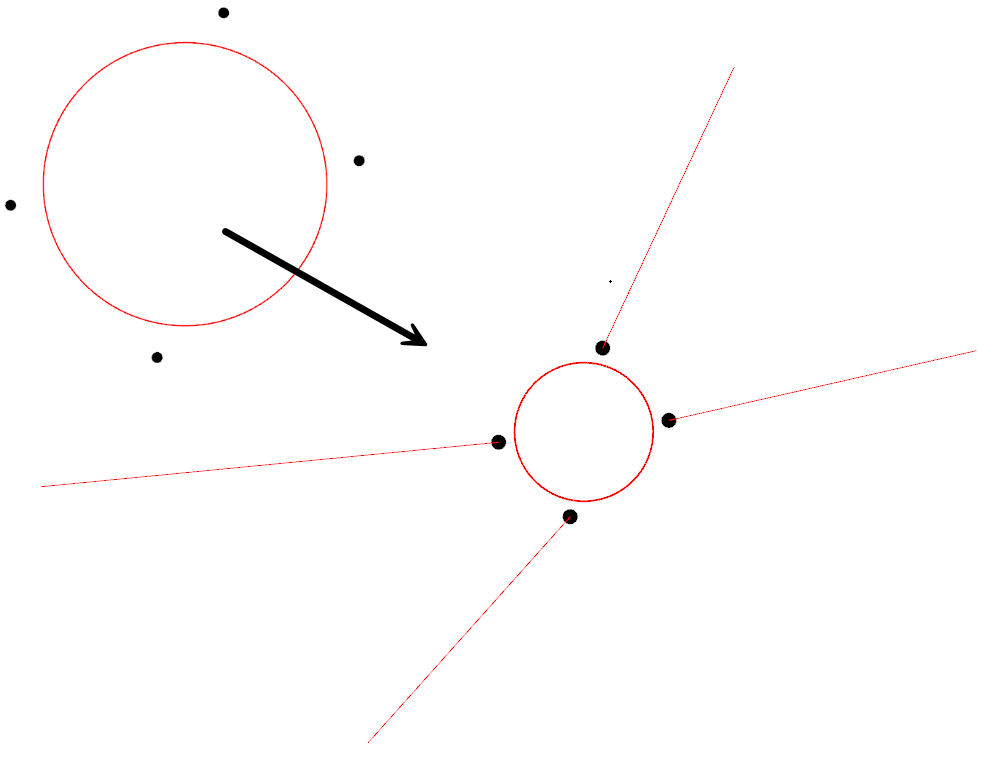

Displays a Line based on the measured Probe vector. Note: when constructing features from imported data, measured vectors may not exist.

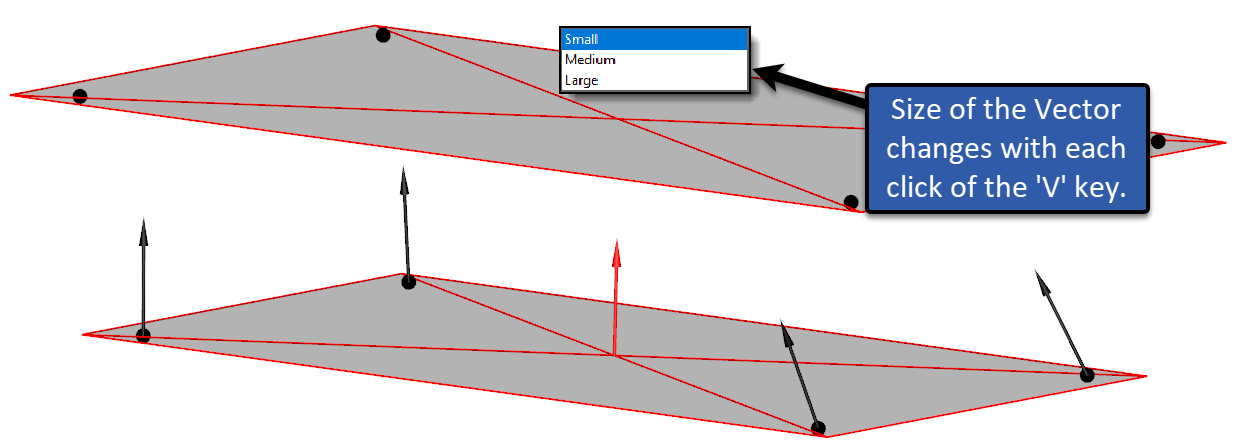

Displays the measured Probe vector of the Feature and the points when displayed. Size of the vector changes with each click of the “V” key.
