Working with UCC Servicer Offline Shortcut extensions

Renishaw UCC Servicer offline is used to simulate CMM environments to aid in proving/troubleshooting CMM Programs.

Once installed, the UCC Server desktop icon target must be edited to enable the offline version to work.

Right-click the desktop icon, then select Properties from the list.

In the Target box, add the target extensions required for the offline version to operate.

Below are the extensions, each with a description.

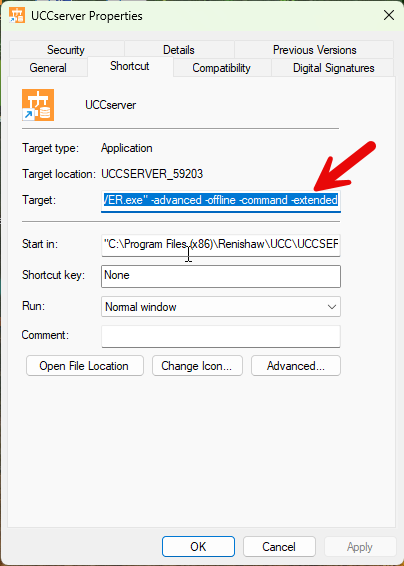

Once completed, the target should look like:

"C:\Program Files (x86)\Renishaw\UCC\UCCSERVER\UCCSERVER_59203\UCCSERVER.exe" -advanced -offline -command -extended

-offline: enables offline simulation of the CMM environment. Requires an offline license if operating standalone from the CMM PC. If operating offline on the CMM PC, a standalone offline license is not required.

-advanced: enables the advanced tab for greater access to settings and control over the CMM environment, such as reach angle when calibrating small styli.

-command: enables the command tab to send iOS plus commands from the UCC server without the use of application software such as Verisurf.

-extended: enables an extended list of commands, such as the RW commands, handy to perform head calibrations on PH20 and REVO.

Note:

UCCSERVER_59203 is the installed version; users' versions may differ.
